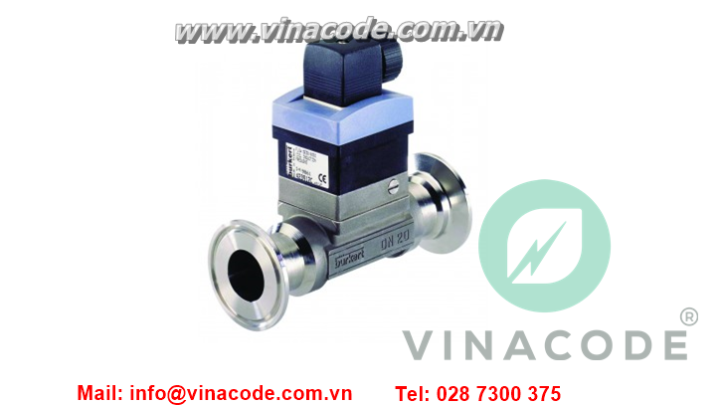

BURKERT TYPE 8030 – FLOW SENSOR
Model Number: 8030
The paddle-wheel flow sensor is specially designed for use in neutral, solid-free liquids. The sensor is made of a compact fitting with integrated paddle-wheel and an electronic-nodule, quickly and easily connected together by a bayonet. The hall-sensor produces a frequency signal proportional to the flow which can easily be transmitted and process.
• Pipe diameter DN 15…50
• Measuring range 0.3…10m/s
• Measuring error
• Output signal Transistor PNP and NPN
• Supply voltage 12…30 VDC
• Enclosure IP 65
• Fluid temperature maximum 0°C … +100°C
