Microbial Fuel Cell (MFC)-type Biomonitoring System, HATOX-2000, is toxic substance detecting equipment that uses MFC, which is the first source technology in the world. HATOX-2000 is a toxin detector that features fast response and high sensitivity to toxic substances. It is equipped with an eco-friendly system that reacts to diverse toxic substances yet doesn’t emit any hazardous chemicals. It is not only easy to maintain, but also has the advantage of cost efficiency. It also has less clogging due to the use of a large drain.
Characteristics

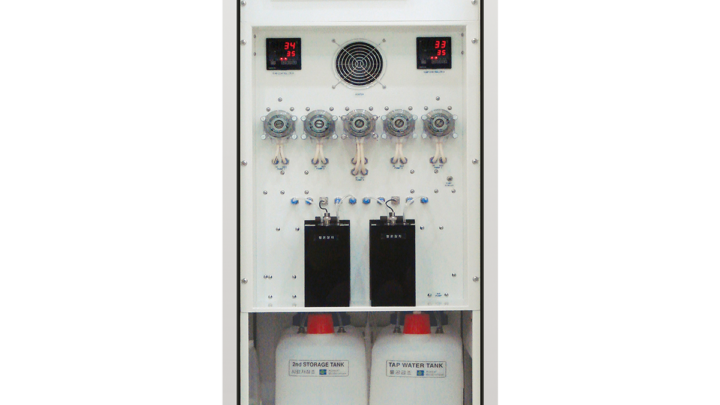

HATOX-2000
-
MFC type sensor
-
Fast response and high sensitivity to toxins
-
Stable system free of false alarm
-
Easy maintenance
-
Economical maintenance expenses
-
Status condition display
Principle
- HATOX-2000 detects level of toxicity by using MFC. When a sample containing toxic substance enters, the value of the current changes as the toxic substance affects the normal electron transport system of the microbe. Here, the difference in the value of current is displayed as level of toxicity.
Specification
-
-
- Measurement item
-
Toxicity (TOX)
-
- Measurement method
-
Microbial fuel cell(MFC) using electrochemically active bacteria(EAB)
-
- Measurement principle
-
Conversion of change of electrical signal generated by bacteria in MFC to toxicity
-
- Measurement range
-
–100~+100%
-
- Measurement interval
-
10 minutes (Adjustable)
-
- Response time
-
Within 30 minutes
-
- Operation system
-
Windows 7 (CPU process) or more
-
- Output
-
TCP/IP, DC 4~20mA, RS-232C
-
- Status display
-
Normal operation, on calibration, error
-
-
-
- Display
-
Color LCD 10.4″ (Touch screen)
-
- Power
-
AC 220V, 50/60Hz
-
- Power consumption
-
Average 150W (Maximum 250W)
-
- Data storage capacity
-
HDD 100G or more
-
- Data output
-
USB terminal
-
- Enclosure/ Size
-
Steel, IP55 / 600(W) × 662(D) × 1700(H) mm
-
- Automatic thermostat
-
Thermoelectric element type
-
- Operating humidity
-
RH 95% or less
-
Application
Application Field
-
Surface water monitoring
- River, lake, river water quality
- Waterworks facilities (intake station and Water plant, etc.)
-
Water quality TMS
- Sewage treatment plant, Wastewater treatment plant
- Wastewater discharging facility, Rural sewage treatment facility, etc.
-
Process control, etc.
- STP process management,
- IWWTP process management, etc.
Installation Pictures
-
Okjeong Lake / Hantangang -
China / Guangdong
